Anatomy of an Electrical Panel; your breaker box explained by an Electrician

Your electrical panel is the heart of your home’s power system, the hidden command center that manages electricity for every light, outlet, and appliance. It’s often overlooked until something goes wrong, yet it plays one of the most vital roles in keeping your family safe and your home efficient.

Anatomy of an Electrical Panel: Understanding What Powers Your Home

In Houston, where the climate is hot, humid, and storm-prone, understanding your electrical panel isn’t just about curiosity it’s about safety and prevention. Many homes across Houston, Cypress, Tomball, and Katy still use original panels installed decades ago, which may not be equipped to handle modern electrical demands from air conditioners, EV chargers, or high-efficiency appliances.

By learning the key parts of your panel and how they work together, you can spot early signs of trouble, schedule timely inspections, and make informed decisions about upgrades before costly issues arise.

What an Electrical Panel Does

An electrical panel (often called a breaker box or service panel) acts as the distribution hub for all power entering your home.

It receives electricity from the utility provider typically CenterPoint Energy in the Houston area and channels it into individual circuits that power everything from your lights and refrigerator to your garage tools and HVAC system.

Beyond distribution, it performs several key safety functions:

• Prevents overloads: Breakers automatically shut off if too much current flows through a circuit.

• Protects wiring: Stops overheating that can lead to electrical fires.

• Balances power: Ensures even distribution across circuits.

• Serves as an emergency cutoff: The main breaker allows for immediate power shutdown during emergencies.




In short, it’s the brain of your electrical system. Without it, power couldn’t be safely controlled or contained and the risks would multiply quickly.

Main Components of a Modern Electrical Panel

Every residential panel contains a few essential components that work together to keep electricity flowing safely and efficiently. Understanding what each one does helps you communicate effectively with your electrician and stay aware of maintenance needs.

1. Main Breaker

The main breaker functions like a master switch, controlling all power entering the home. It’s typically rated between 100 and 200 amps for residential properties. Flipping this breaker cuts power to all circuits in the panel.

When a storm hits or maintenance is needed, this switch is the safest way to shut down your home’s electrical system. For homes equipped with generators or solar panels, the main breaker also helps coordinate load transfer, ensuring no back feed reaches the grid a key requirement under Texas energy codes.

2. Bus Bars

Bus bars are thick, conductive metal strips that carry current from the main breaker to the branch circuit breakers. These are essentially the “highways” of your electrical panel.

Panels are typically built with copper or aluminum bus bars:

• Copper offers superior conductivity and resists corrosion.

• Aluminum is more affordable but can oxidize over time, especially in humid conditions like Houston’s.




That’s why Unity Services often recommends panels with copper bus bars for Houston-area homes they’re more resilient to the region’s high humidity and coastal air.

3. Neutral and Ground Bars

Two important sets of terminals run along the sides of your panel:

• The neutral bar carries unused current back to the utility.

• The ground bar provides a safety path for stray current during a fault.

If these bars are loose, corroded, or improperly bonded, you risk electrical shocks, flickering lights, or tripped breakers. In Houston’s moist climate, these connections can degrade faster, which is why annual tightening and cleaning are essential parts of any professional inspection.

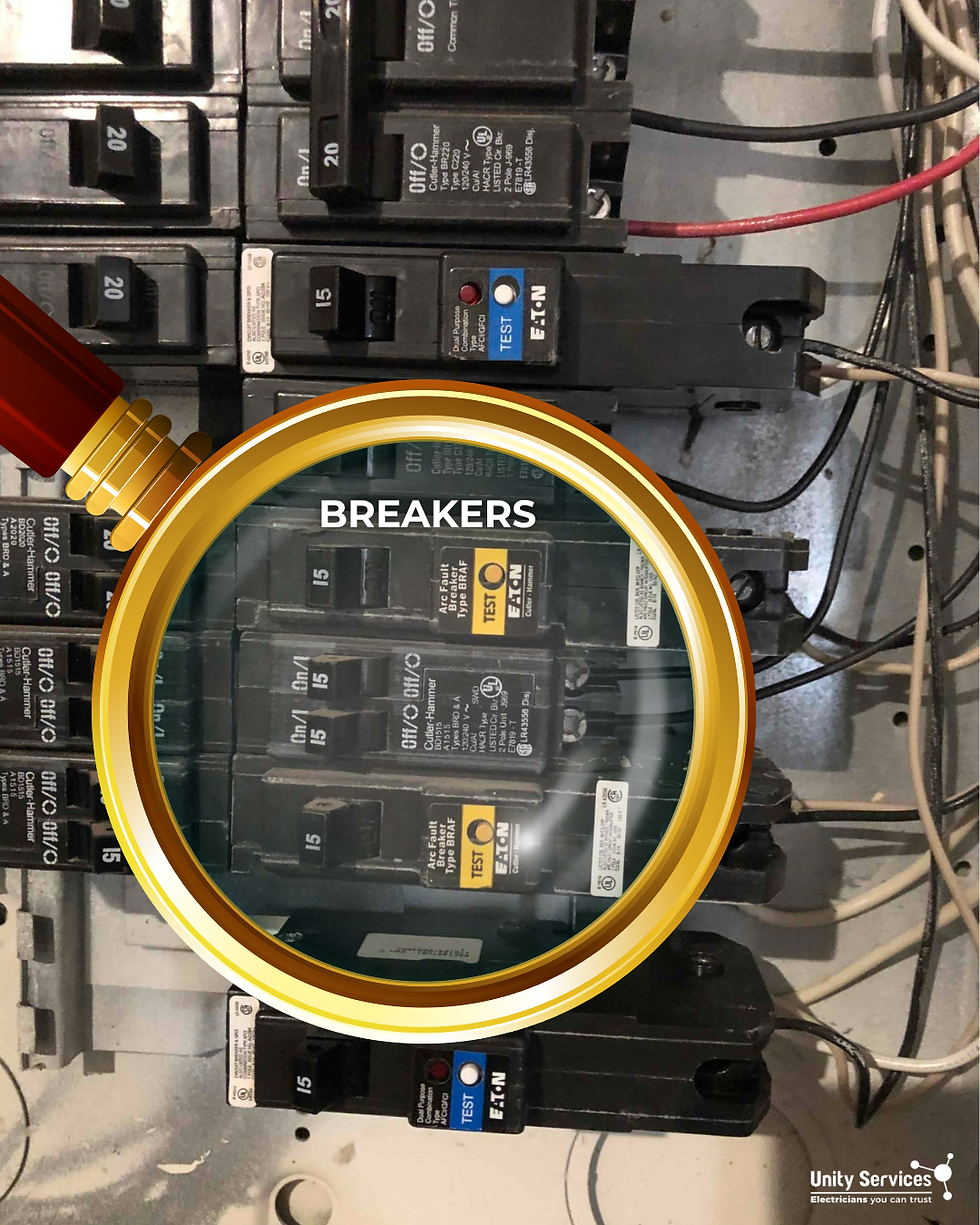

4. Circuit Breakers

Circuit breakers are the workhorses of the electrical panel. Each one protects a single circuit whether that circuit powers your kitchen outlets, lighting, or air conditioner.

When a circuit draws more current than it can safely handle, the breaker trips instantly cutting off power to prevent overheating or fire. Breakers come in different types and sizes:

• Single-pole breakers (120 volts): Used for standard outlets and lighting.

• Double-pole breakers (240 volts): Used for heavy appliances like HVAC units, electric ovens, or dryers.

• AFCI breakers: Detect dangerous electrical arcs (tiny sparks caused by damaged wires).

• GFCI breakers: Detect ground faults, preventing shock hazards near water sources.

Texas building codes now require AFCI and GFCI protection in many areas of the home. If your panel doesn’t have these, Unity Services can retrofit them for compliance and added safety.

5. Labels and Identification

A well-labeled panel may seem like a small detail, but it’s one of the most important safety features. Labels allow electricians and homeowners to quickly identify which breaker controls which part of the house.

Every breaker should clearly indicate the area or appliance it powers (e.g., Kitchen Outlets, A/C Unit, Master Bedroom Lights). During inspections or emergencies, this labeling saves valuable time.

Unity Services takes extra care to ensure Houston panels are professionally labeled with durable, moisture-resistant tags that won’t smudge or peel over time because in a humid Gulf climate, even ink can fade fast.

Why Panel Design Matters in Houston Homes

Your home’s electrical panel must do more than just supply power, it must stand up to the unique environmental and electrical demands of Houston.

Between the area’s long summers, severe storms, and modern home energy needs, having the right panel size and configuration is critical.

1. Managing High Power Loads

Houston homes often rely heavily on central air conditioning, outdoor lighting, and large appliances. An undersized panel may constantly trip breakers or overheat. Upgrading from a 100-amp to a 200-amp panel provides more room for expansion and reduces stress on existing circuits.

2. Withstanding Weather Extremes

High humidity and heat can corrode metal components and warp breaker housings. Unity Services often finds this damage during routine inspections in outdoor panels, especially in neighborhoods near Cypress Creek and Bridgeland.

3. Supporting Modern Additions

From EV chargers to pool heaters, new technology demands more amperage and better circuit separation. Proper panel design allows for future upgrades without costly rewiring.

Common Panel Types Found Across Houston and Surrounding Areas

Knowing what type of panel you have can help you understand its capabilities and whether it might be time for an upgrade.

• Main Breaker Panel: The standard in most Houston homes. Includes a built-in shut-off for total power control.

• Main Lug Panel: Usually a secondary (sub-panel) for garages, additions, or detached workshops.

• Smart Panel: Newer systems from brands like Leviton or Square D that connect to Wi-Fi and show real-time energy use on your phone.

Unity Services installs and maintains all major U.S. panel brands including Square D, Eaton/Cutler-Hammer, Siemens, and GE all approved under Texas codes.

How Houston’s Climate Affects Electrical Panels

Houston’s Gulf Coast location means three major panel stressors: humidity, heat, and lightning.

• Humidity: Causes corrosion on terminals, especially in outdoor meter bases.

• Heat: Expands wiring insulation and weakens breaker tension over time.

• Lightning and power surges: Can damage bus bars or melt breaker contacts.

Installing whole-home surge protection helps protect your panel and electronics from severe voltage spikes something Unity Services strongly recommends for Houston homeowners.

Maintenance and Inspection: Protecting Your Home’s Electrical Heart

Just like an annual HVAC tune-up, your electrical panel needs regular attention.

Professional Maintenance Includes:

• Tightening all breaker and neutral screws.

• Inspecting for moisture, corrosion, or discoloration.

• Testing AFCI and GFCI breakers for proper operation.

• Verifying proper labeling and load balance.

• Cleaning out debris, insects, or insulation dust.

Homeowner Maintenance Tips:

• Keep the area around your panel clear and dry.

• Never tape or wedge a breaker in the ON position.

• Don’t exceed the breaker’s labeled load capacity.

• Call a licensed electrician immediately if you smell burning or see scorch marks.

Routine maintenance extends your panel’s life from 15–20 years to well over 30, saving you money and providing peace of mind.

Safety and Code Compliance in Texas

Electrical safety isn’t optional it’s the foundation of every reliable home. Texas follows the National Electrical Code (NEC), updated every three years to reflect new technologies and safety requirements.

The City of Houston enforces NEC compliance through its local inspection process. Common issues found during inspections include:

• Undersized panels

• Double-tapped breakers

• Improper bonding between neutral and ground

• Corrosion on outdoor panels

Unity Services ensures that every installation or upgrade meets both Texas state code and Houston’s municipal standards for residential electrical systems.

Partnering with Unity Services

As a family-owned electrical contractor serving the greater Houston area, Unity Services provides expert residential panel inspections, maintenance, and upgrades that protect your investment.

Our licensed electricians bring years of experience and a genuine commitment to community safety. Whether you live in a 1980s home in Cypress or a new construction in The Heights, we ensure your electrical system performs safely and efficiently year-round.
